This system mixes powder materials with binders to produce suitable soft materials, which are then extruded into cylindrical particles and placed in a spherical shot blasting mechanism to produce highly spherical particles. The excess moisture is then dried using a drying device to obtain the desired spherical particles.
System composition: Mixing + preliminary granulation + round + drying + screening = finished product
Mixing: CH trough mixer or other mixer (mixing class); Granulation: ZL rotary extrusion granulator or YK swing granulator (granulator);
Round: QZL round granulator; Drying: GFG high efficiency boiling dryer, FG boiling dryer, oven or other; Screening: ZS vibrating screen or other.

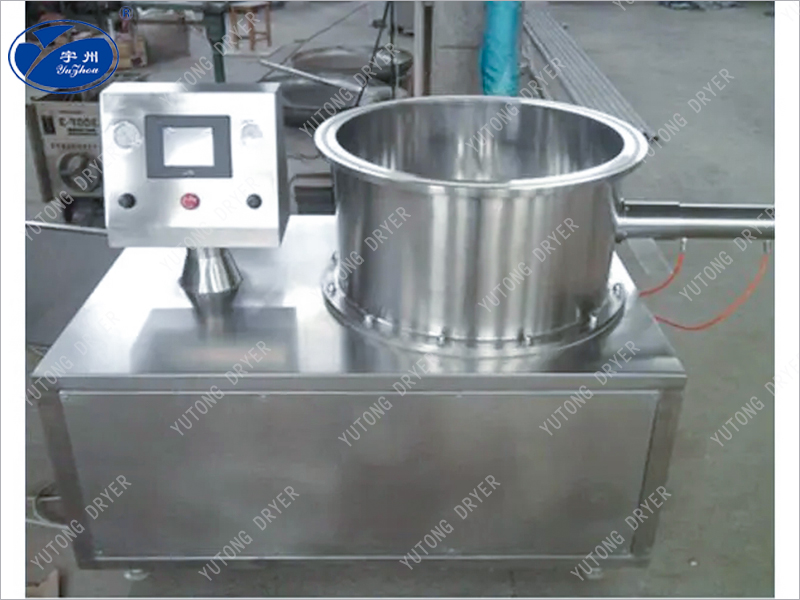

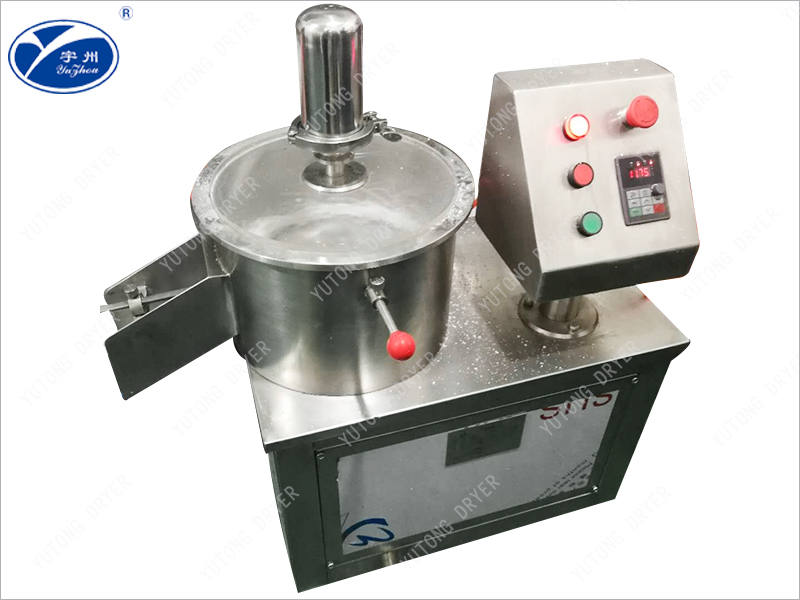

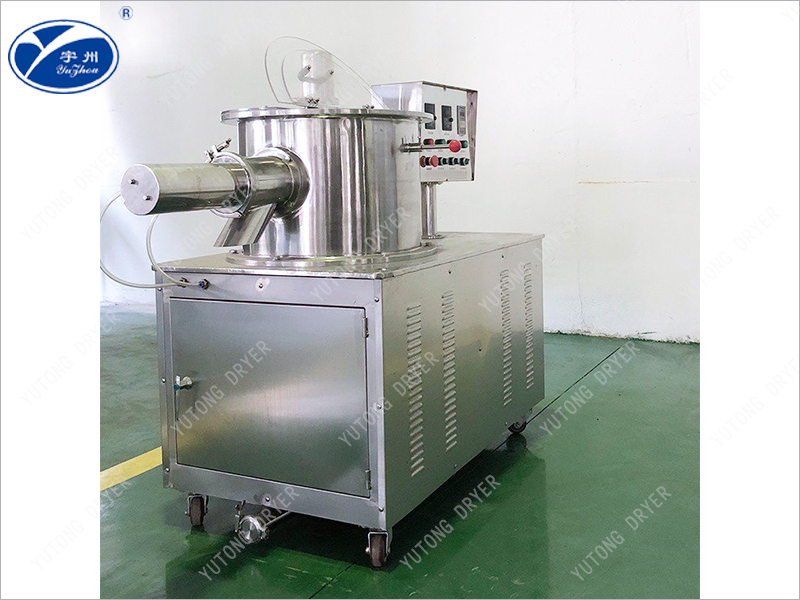

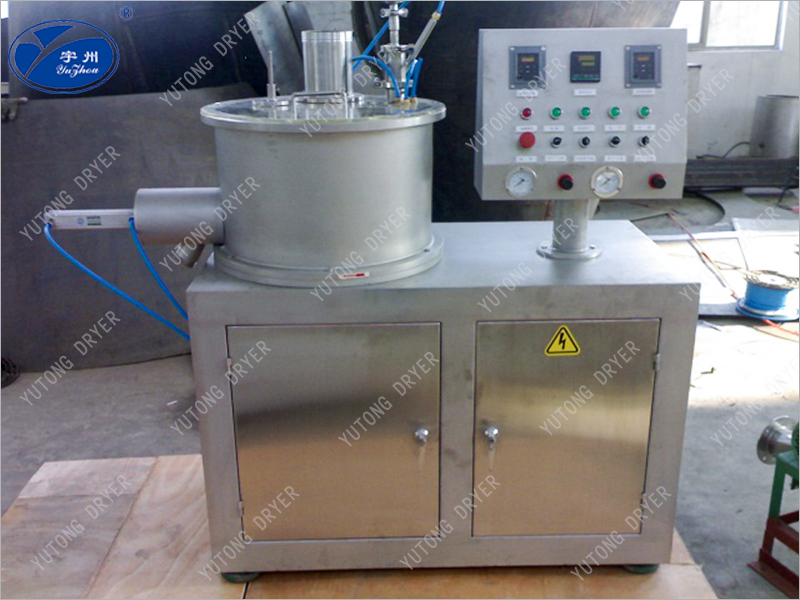

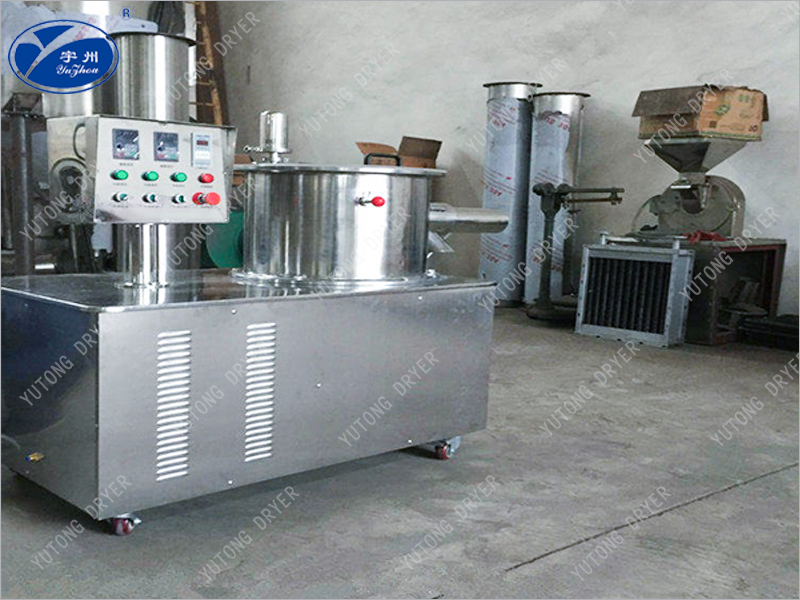

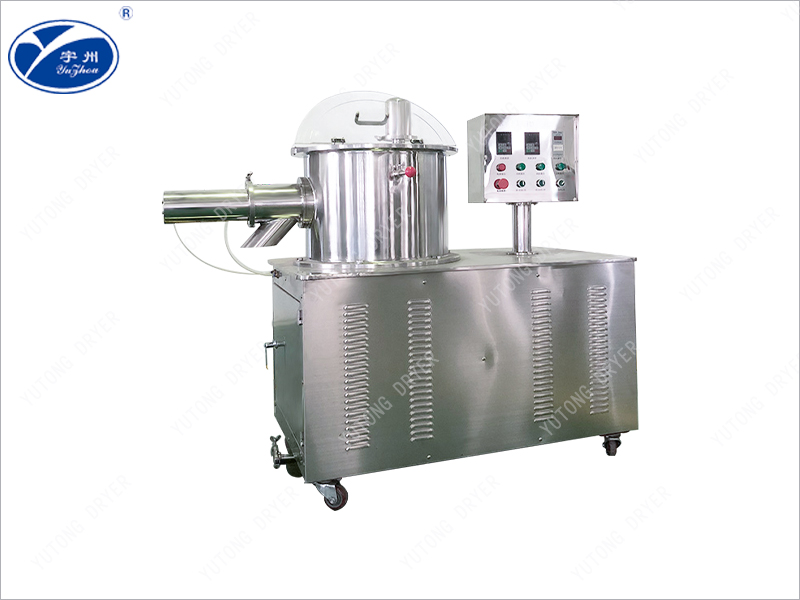

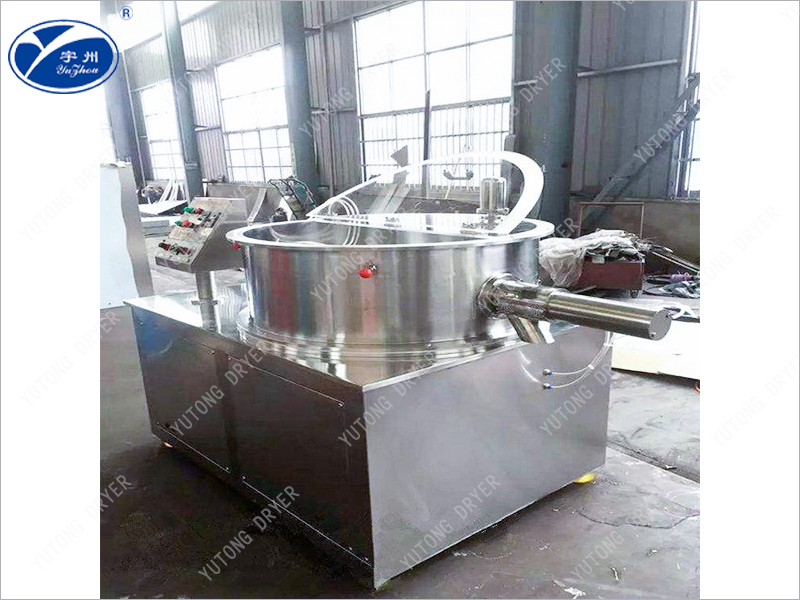

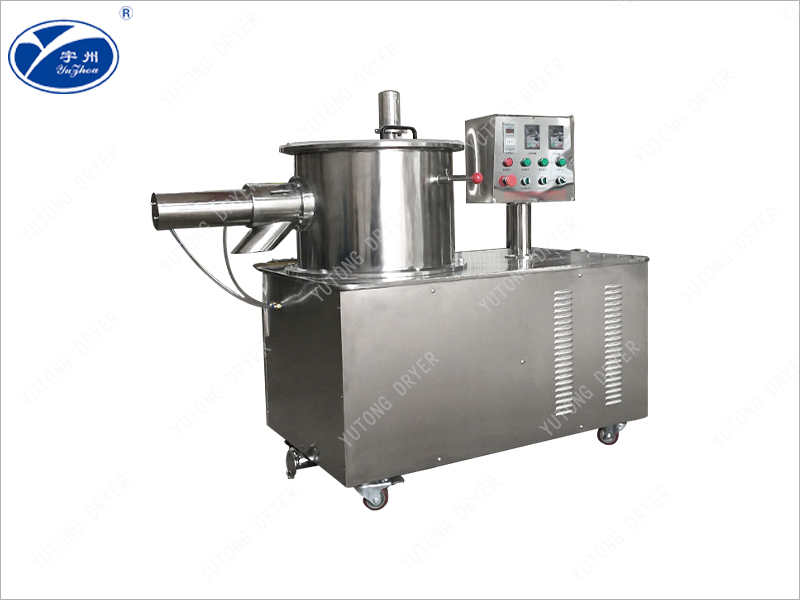

The wet particles made in the previous process are put into a rotating centrifugal disk, and the wet particles are subjected to the buoyancy of the air in the annular gap, the centrifugal force of rotation, and their own gravity, and move in a circular rope like shape. The formula liquid is sprayed into the moving material layer from a reasonable direction through a multi fluid spray gun, thereby forming highly spherical pellets. The principle is similar to that of a rotating fluidized bed.
Omeprazole pills, aspirin pills, feed enzyme pills, sodium sulfate pills, compound paracetamol pills, catalysts, and composite VB2 film pills.
1、Blower can be equipped with motor frequency conversion, the whole grain is faster, the finished product is more beautiful.
2、The rotating disk uses a two-speed motor to make the product beautiful.
3、The material is operated in a closed container, no dust flying, safe operation
