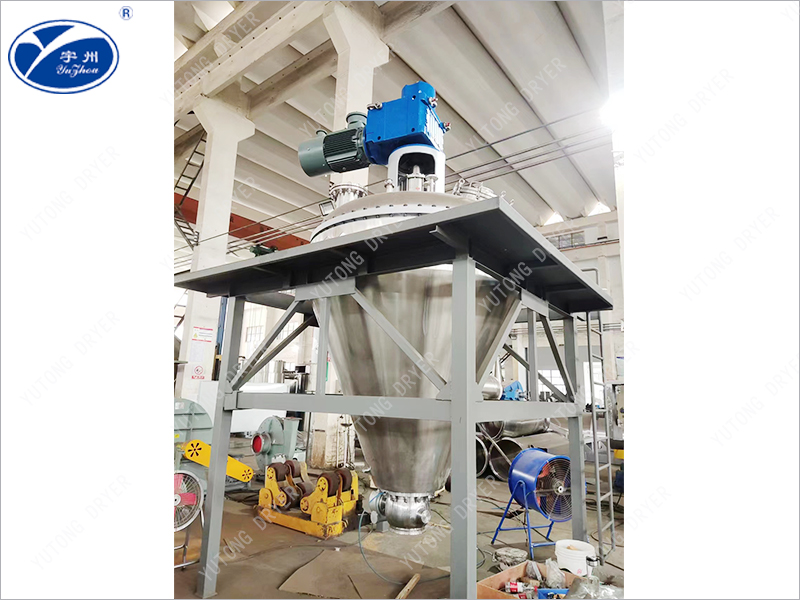

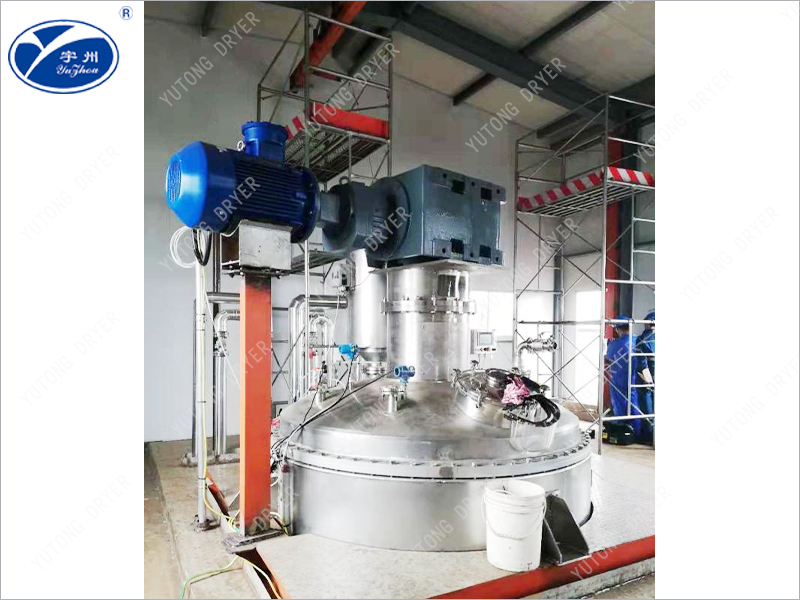

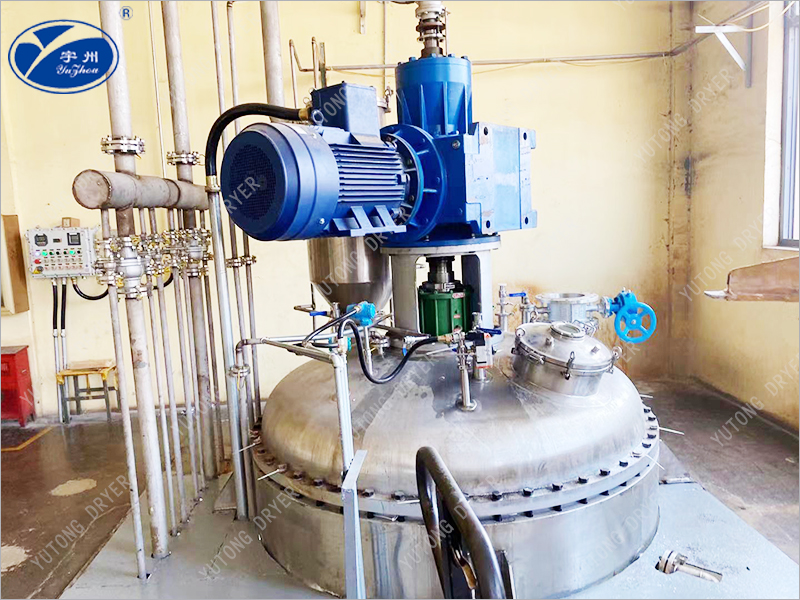

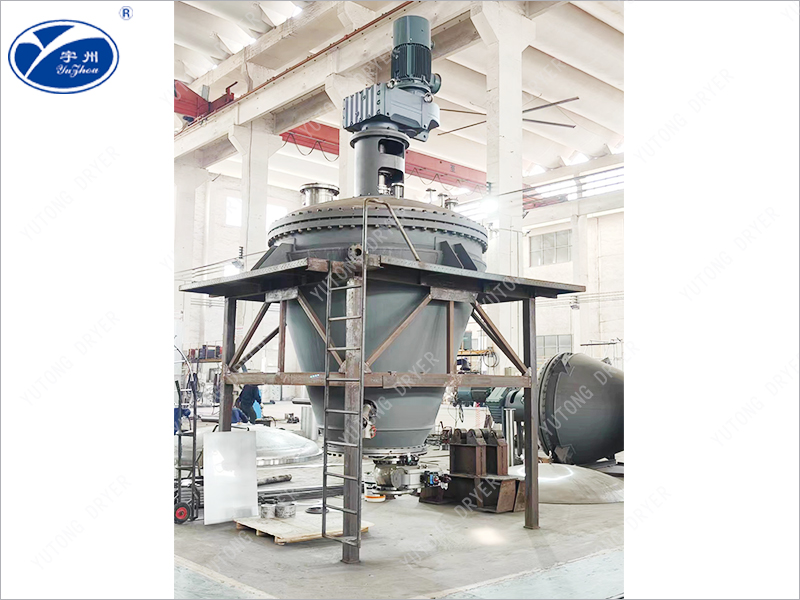

The GLZ series vacuum spiral belt dryer is a new generation of vacuum drying and mixing equipment developed by our factory to digest and absorb similar foreign products. The equipment integrates drying, crushing, vacuum pressure reduction, and powder mixing. It consists of a motor, reducer, frame, mechanical seal, filter, spiral belt agitator, conical cylinder with jacket heating, and discharge valve. It can achieve continuous operation in a closed manner throughout the entire process. Its drying efficiency is 3-5 times that of the SZG series double cone rotary vacuum dryer of the same specification. It is mainly used for powder drying in industries such as pharmaceuticals, chemicals, pesticides, and food.
The main body of the GLZ series vacuum ribbon dryer is vertically stationary, and the internally heated ribbon performs circular stirring and lifting motion. After the material enters the drying chamber, it is heated by the jacket and stirring ribbon, and the material is stirred in an orderly manner by the ribbon, flipping, lifting, and falling, so that the material continuously contacts the heating chamber wall for forced heat exchange. The solvent evaporated by heating is extracted in a vacuum state, thus achieving the purpose of rapid drying.
1, equipment and material contact parts are made of "GMP" requirements materials.
2, the top drive, the equipment in the feeding, drying, mixing, discharging process without contact with the outside air, no leakage, no dead Angle.
3. The design, manufacture and testing of the equipment cavity shall be carried out in accordance with the requirements of the pressure vessel.
4, the rotating connection part adopts the double-end dry mechanical seal approved by GMP requirements, and no foreign matter falls.
5, the chamber and the mixing paddle are equipped with heating runner, and the mixing paddle drives the material for heat exchange orderly and evenly, and the heating area is large.
6, the material is not hung on the wall during the drying process.
7. Finish of the part in contact with the material :Ra≤0.4um(surface passivation or electrolytic polishing).
8. Set the line sampler.
9, set the valve top dead Angle back mouthpiece.
10, stable operation, protect the crystal shape.
11, low energy consumption cost, high mixing efficiency.
12, simple operation, easy maintenance.
